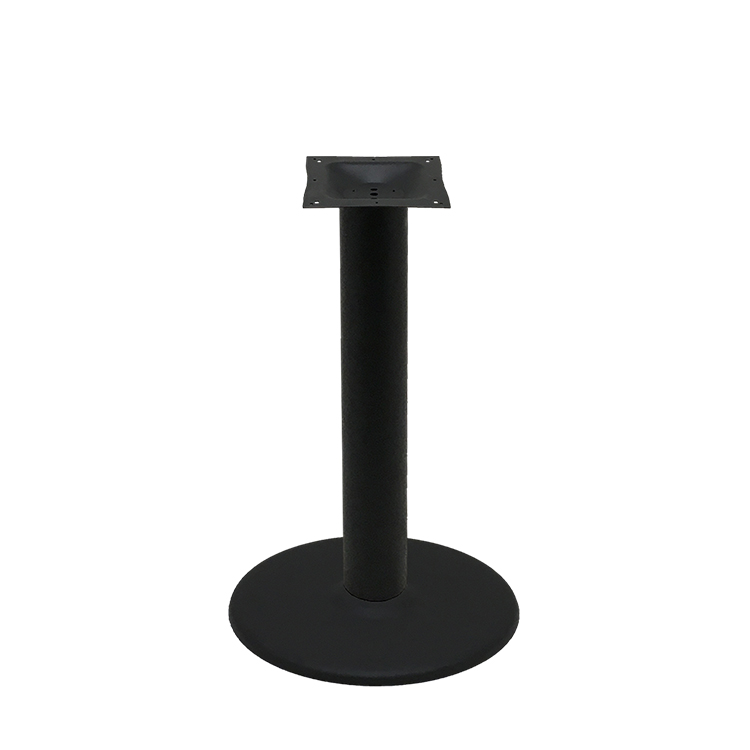

Table Base with 22″ Disc – Black Stamped Steel – Standard Height – 4″ Column

SKU: B22DISC-4-STD Categories: , , Brand:
  • 22″ diameter disc
  • 4″ diameter column
  • 28.75″ overall height (excluding table top)
  • Stamped steel construction for unparalleled strength and stability – will not fracture under heavier weights like cast iron bases
  • Black finish
  • Easy two-piece assembly
  • Includes non marring adjustable levelers
  • 11″ x 11″ welded spider (Oak Street’s spiders are bigger than most competitors – providing additional strength and durability)
    • Spider attaches to table top with (8) 3/4″ – #10 screws
  • Oak Street’s column/spider feature a welded anchor plate at the bottom of column. The anchor plate also has a welded nut on back of anchor plate.
    • A short bolt with both flat & lock washer is screwed through the foot and into the welded anchor plate. The flat washer keeps the lock washer from moving on the anchor plate, preventing the bolt from becoming loose
    • This is a much improved method than competitors, which use a long rod that will torque & stretch when force is applied – making it permanently loose
  • Oak Street’s base bottoms feature welded glide tabs with hollow back – not possible with cast iron bases – drastically reducing the chances of having a bad tab for leveling glides

Attention California Residents: Proposition 65 Warning



Suggested Table Base Applications

Weight 40 lbs
Dimensions 22 × 22 × 28.75 in
Base Finish

Black

Base Height

Standard

Base Material

Steel

Base Style

Disc

Base Column Size/Diameter

4" Ø

Base Foot Size

22" Ø

Application

Indoor

Base By Table Size

24" x 36", 24" x 42", 24" x 48", 30" Round, 30" x 30", 30" x 36", 30" x 42", 30" x 48", 36" Round, 36" x 36", 36" x 48"
