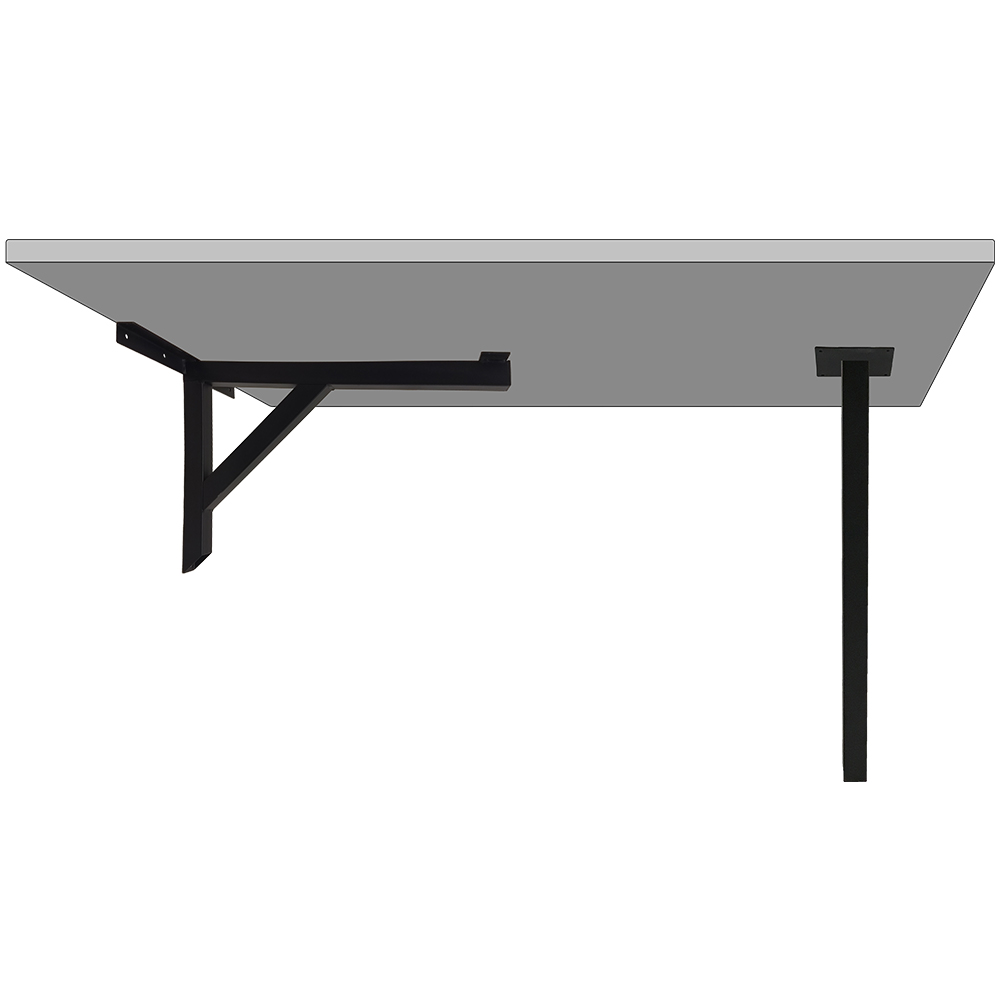

Cantilever Table Base - 21" L with Pin Leg - Standard Height - 2" Square Column
Cantilever Table Base - 21" L with Pin Leg - Standard Height - 2" Square Column - Image 2
Cantilever Table Base - 21" L with Pin Leg - Standard Height - 2" Square Column - Image 3
Cantilever Table Base - 21" L with Pin Leg - Standard Height - 2" Square Column - Image 4

Cantilever Table Base – 21″ L with Pin Leg – Standard Height – 2″ Square Column

Click here to download the CANTILEVER-PREMIUM Spec Sheet

   Click here to download the Assembly Instructions

Add to quote
SKU: CANTILEVER-21" with SSB-PIN Categories: , , Brand:
  • 11 gauge tubular steel construction
  • Black finish
  • 4 drill holes for wall attachment + 4 drill holes each end of base for table top attachment
  • Screws/bolts not included – even if table tops ship together
  • 20″ W x 21″ L x 19.75″ H
  • Pin Leg: 5″ W x 5″ L (spider) – 2″ square tubular column
    • 28.5″ H
    • Includes adjustable leveler
  • Min. table size: 24″ x 36″, maximum length: 48″, maximum width: 36″

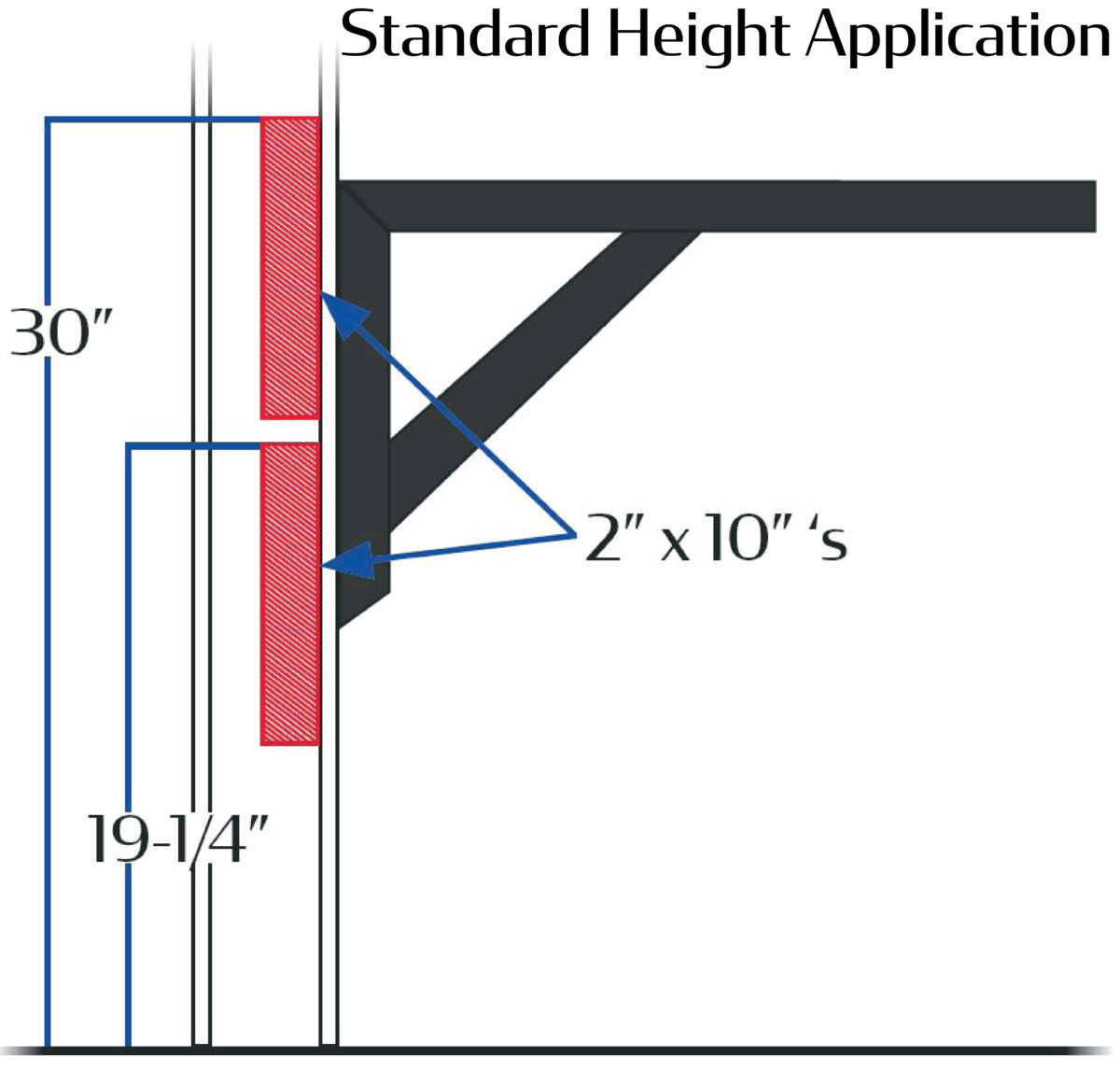

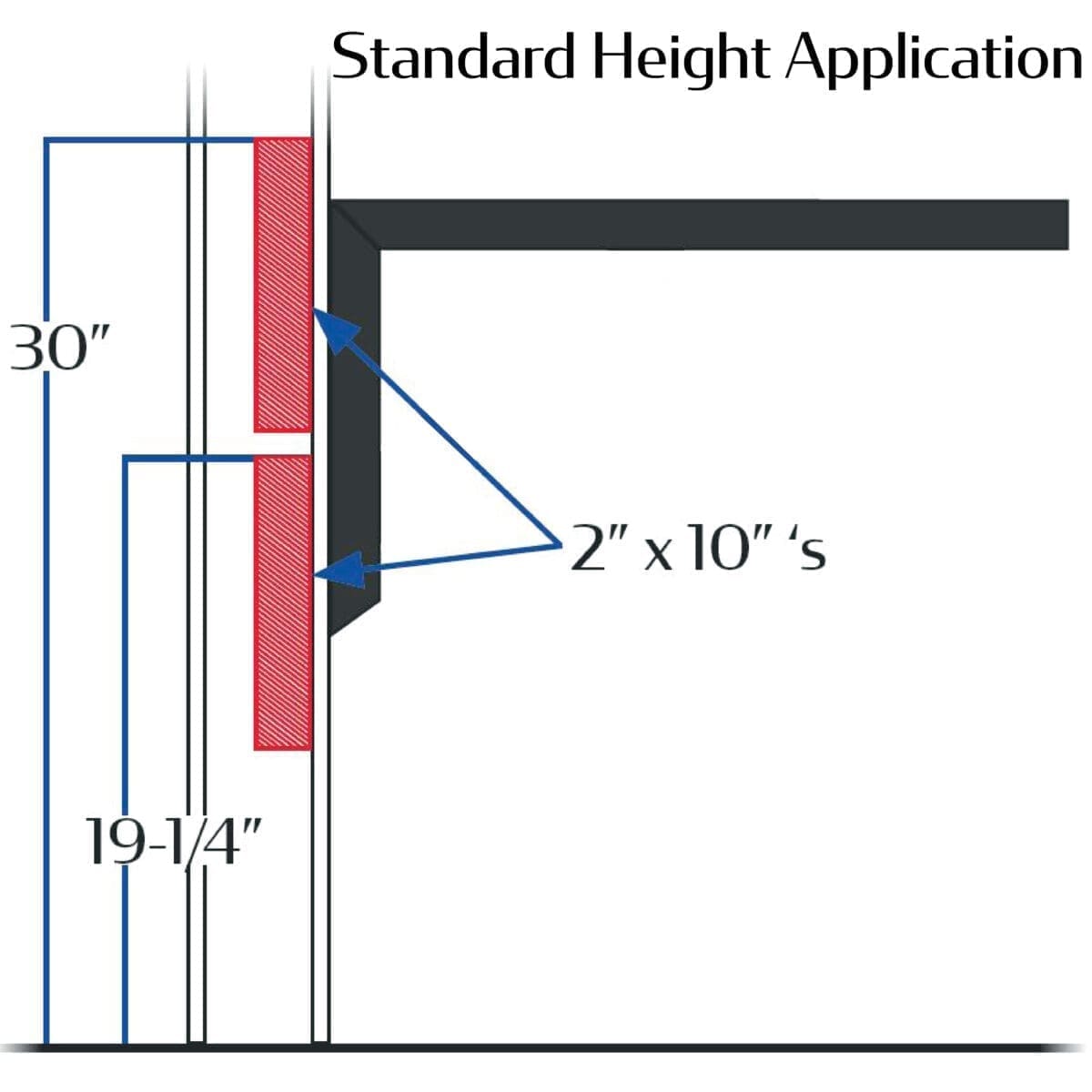

  • NOTE: Requires reinforced wall (see images) *30″ top 2×10 height for standard height*

Attention California Residents: Proposition 65 Warning

Weight 16 lbs
Dimensions 21 × 20 × 28.5 in
Base Finish

Black
Base Height

Standard
Base Material

Steel
Base Style

Cantilever
Base Column Size/Diameter

2" x 2"
Cantilever Size

21"
Base By Table Size

24" x 36", 24" x 42", 24" x 48", 30" x 36", 30" x 42", 30" x 48", 36" x 36", 36" x 48"
Pin Leg

SSB-PIN
Application

Indoor
